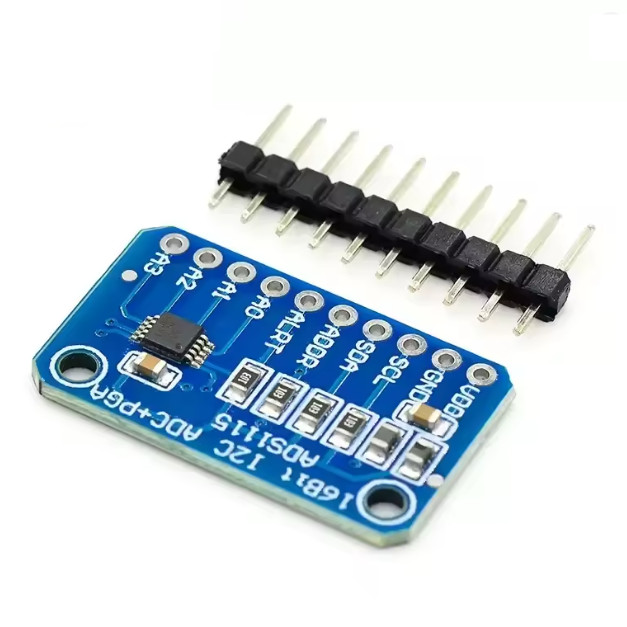

1.ADC Bit: 16 Bits
2. Interface Type: I2C
3. Channel: 4 Channels AN0 AN1 AN2 AN3 Or 2 Differential Inputs
4. Input Voltage: 2.0-5.5V
5. Channel Input Voltage: 0-VDD
6. Continuous Mode: 150uA Only
7. Single Mode: Automatic Shutdown
8. Programmable Data Rate: 8sps-860sps
9. Input Range Programmable, 7 Input Ranges: -0.256v~+0.256v, -0.512v~+0.512v, -1.024v~+1.024v, -2.048v~+2.048v, -4.096v~+4.096v, -6.144v~+6.144v
10.I2c 7-Bit Address Between 0x48-0x4b
11.Size: 38*18*3mm/1.48*0.7*0.12in
12.Application Areas: Portable Instrumentation, Consumer Products,Battery Monitoring,Temperature Measurement,Factory Automation And Process Control
