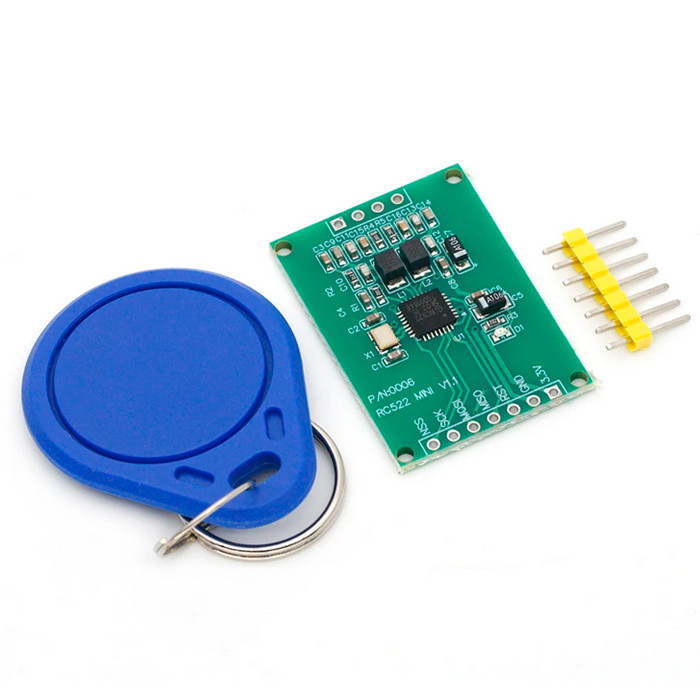

MFRC522 RC522 RFID Radio Frequency Induction IC Card Read and Write Module of Small Size Mini 13.56 MHZ
Category : Modules
Hits : 40
Brief :
RC522 module is based on rf base station chip NXP Mifare card read/write module, the module in 13.56 MHz, conforms to ISO14443A standard, can support Mifare1 S50. Mifare1 S70, Mifare Light. The Mifare UltraLight. Mifare Pro. The module is easy to use. Highly reliable. Small size and other characteristics, can help customers convenient. Qu
  • Description
  • Inquiry
1.The moduleSize 35 MM * 25 MM, ultra small size, convenient to embed your system 2.The working frequency of 13.56 MHz 3. Working voltage from 2.5 V to 3.6V 4.Working current use routines for card current20ma (3.3 V) 5.Support type MIFIRE1 S50 S70 UltraLight Pro 6.Working temperature - 25 ~+85 degrees 7.Label the 10 types functional description 8.Is 3.3 V power supply power 9.GND power supply power supply 10.RST input reset 11.MISO output SPI mouth from the machine output 12.MOSI input SPI mouth from the machine 13.SCK SPI mouth clock input 14.NSS input SPI mouth piece
