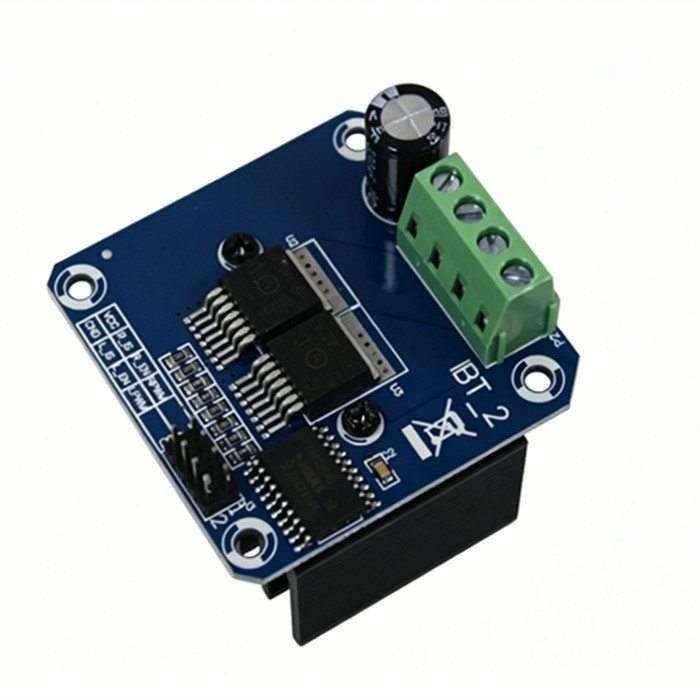

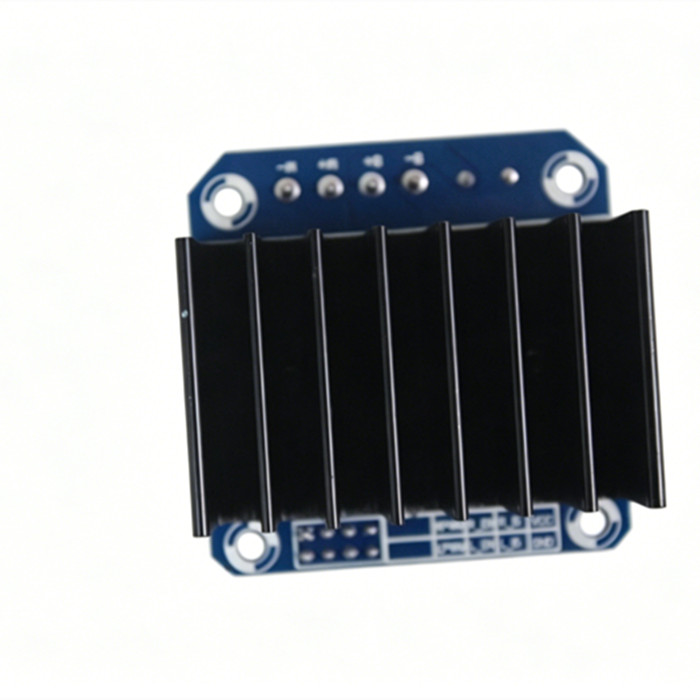

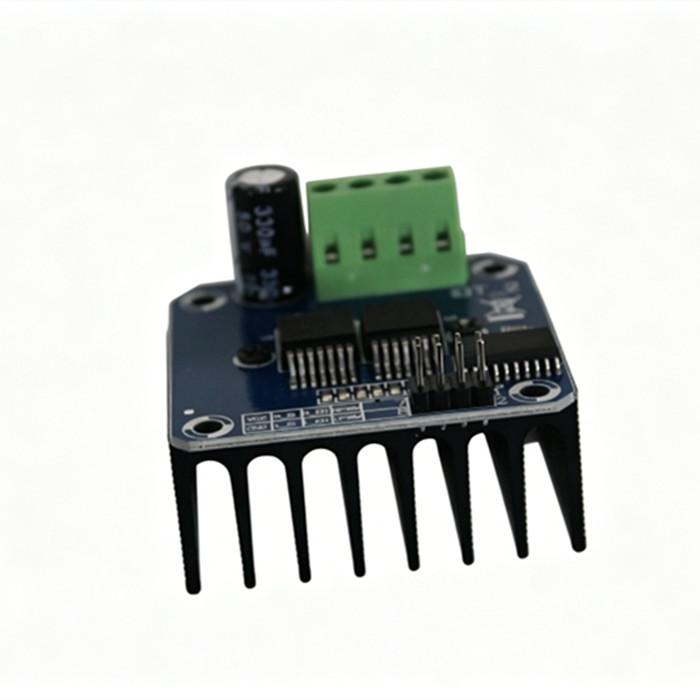

Features: Double BTS7960 large current (43 A) H bridge driver; 5V isolate with MCU, and effectively protect MCU; 5V power indicator on board; Voltage indication of motor driver output end; can solder heat sink;PIN Definition: 1. RPWM: Right Turn PWM 2. LPWM: Left Turn PWM 3. R_EN: Right Turn Enable (High Active) 4. L_EN: Left Turn Enable (High Active) 5. R_IS: Right Turn Current Warning (May Leave Floating) 6. L_IS: Left Turn Current Warning (May Leave Floating) 7. VCC: (5V) 8. GND aeProduct.getSubject() Connections: Method 1: VCC: 5V from Microcontroller(MCU) GND: GND from Microcontroller(MCU) L_PWM: PWM or 5V from Microcontroller(MCU) for CCW(CW) Turns R_PWM: PWM or 5V from Microcontroller(MCU) for CW(CCW) Turns R_EN and L_EN: 5V from Microcontroller(MCU) Method 2: VCC: 5V from Microcontroller(MCU) GND: GND from Microcontroller(MCU) L_PWM: 5V from Microcontroller(MCU) for CCW(CW) Turns R_PWM: 5V from Microcontroller(MCU) for CW(CCW) Turns R_EN and L_EN: PWM from Microcontroller(MCU) Just need four lines from MCU to driver module (GND. 5V. PWM1. PWM2); isolation chip 5V power supply (can share with MCU 5V); size: 4*5 *1.2cm; Able to reverse the motor forward, two PWM input frequency up to 25kHZ; two heat flow passing through an error signal output; isolated chip 5V power supply (can be shared with the MCU 5V), can also use the on-board 5V supply; the supply voltage 5.5V to 27V;
