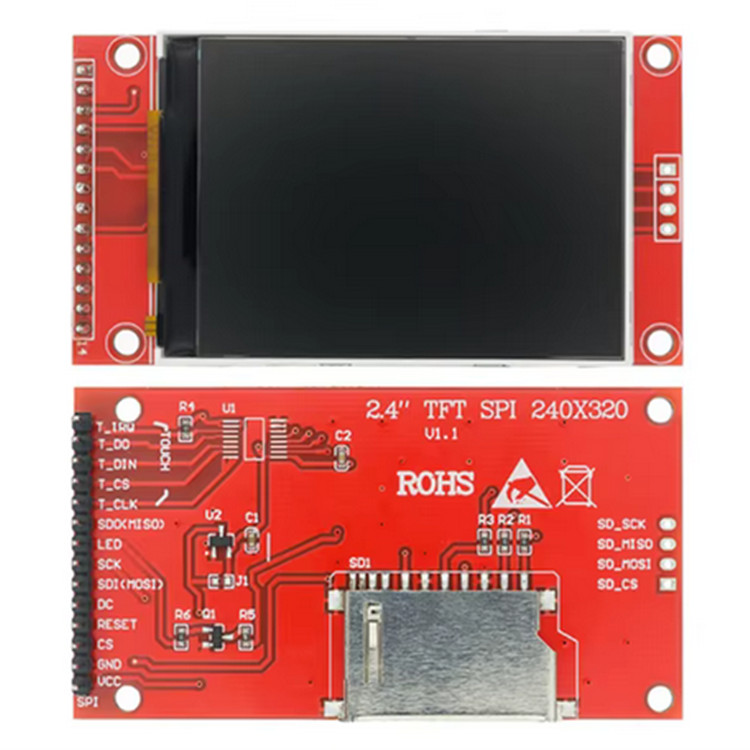

2.4'' 2.4inch TFT Display Module
Category : IC
Hits : 47
Brief :
2.4-inch color screen,support 65K color display,display rich colors 320X240 resolution, optional touch function Using the SPI serial bus, it only takes a few IOs to illuminate the display Easy to expand the experiment with SD card slot Provide a rich sample program Military-grade process standard
  • Description
  • Inquiry
Name Parameter:Display Color RGB 65K color SKU have touch screen: MSP2402 have no touch screen: MSP2401 Screen Size: 2.4(inch) Type TFT Driver IC: ST7789V Resolution: 320*240 (Pixel) Module Interface: 4-wire SPI interface Active Area: 36.72x48.96(mm) Module PCB Size: 77.18x42.72(mm) Operating Temperature: -20 ~60 Storage Temperature: -30 ~70 VCC power voltage: 3.3V~5V Logic IO port voltage: 3.3V(TTL) Power Consumption: TBD Rough Weight(Package containing) No touch: 26(g) / With touch: 36(g)
